Pro Chaser DC-DC Golf Carts RVs 48V 36V Volt Voltage to 12V Step Down Voltage Reducer Regulator for Headlights Taillights Solar Panels Radios (25A 300W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

PC3648-25amp

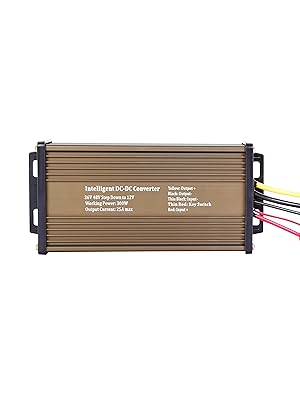

Pro Chaser DC-DC 300W Voltage Reducer

Water Resistant Voltage Regulator

Pro Chaser DC-DC Voltage Regulator reduces DC voltage ranging from 36V to 48V down to 12V at 25A 300W power. The strong and robust completely sealed water-resistant Aluminum shell allows the unit to function under severe outdoor damp weather. The extra key switch wire turns the regulator ON/OFF along with the battery, preventing any accessories from wasting the power when vehicles not in use. The mated connector and butt connectors in the package make installation easy and handy.

IEC 62368-1:2018, CSA/UL 62368-1:2019 Certified

Harness & Butt Connectors Included for Easy Wiring

Water-resistant Aluminum Shell with Laser Print on the Surface

Built-in Anti shortage Fuse to Prevent Damage on the Main Circuit

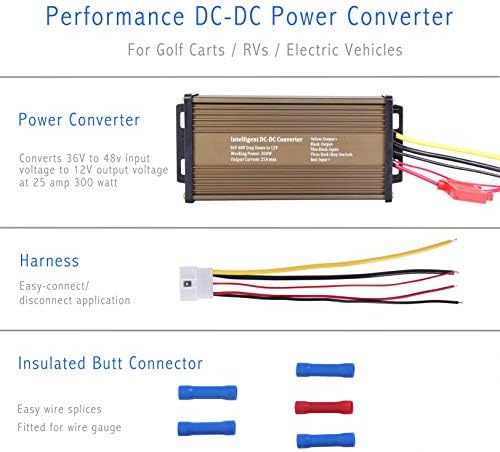

Accessories Included

Harness & Butt Connectors Included for Easy Wiring

Wiring Instruction

Detailed wiring instruction included in the package

High Standard Performance

CSA/UL 62368-1:2019, IEC 62368-1:2018 Certified

Input Voltage

36V-48V

36V-48V

36V-48V

36V-48V

Output Voltage

12V

12V

12V

12V

Working Power

120W

240W

300W

360W

Working Current

10A

20A

25A

30A

Material

Aluminum Alloy Housing

Aluminum Alloy Housing

Aluminum Alloy Housing

Aluminum Alloy Housing

Harness

✓

✓

✓

Butt Connectors

✓

✓

✓

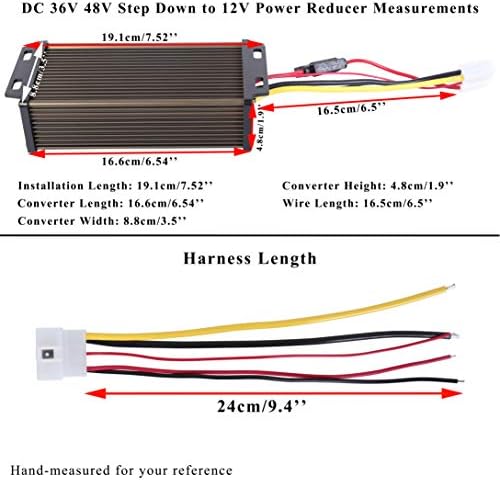

Dimension

4.6 x 2.1 x 1.5 inches

14.2 x 3.5 x 1.9 inches

6.54 x 3.5 x 1.9 inches

7.72 x 3.5 x 1.9 inches

Number of Wires

3

5

5

5

Key Switch Wire

✓

✓

✓

Converts for head-lights, tail-lights, radios, solar panels and etc.
Harness (matched male &female connector) and fitted butt connectors included for easy connect/disconnect application.
Laser print on the surface. Easy ventilation design with aluminum cast shell. Completely sealed water resistant case.

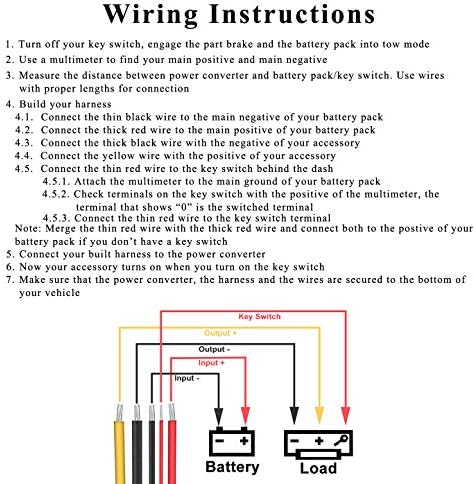

Please follow the last picture in the photo gallery for installatiion instruction.
