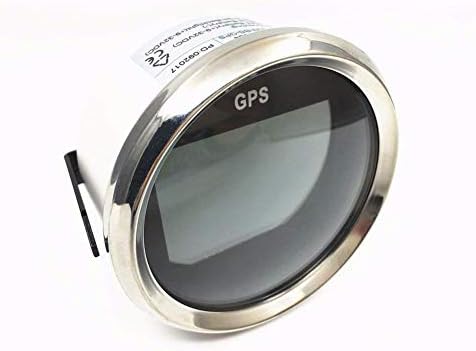

ELING Universal Digital GPS Speedometer Speedo Gauge ODO COG Trip for Car Motorcycle Truck Yacht Vessel 3-3/8” (85mm) 9-32V
(as of Aug 05,2021 19:02:53 UTC – Details)
-Suitable for all vehicles, boats and off-road vehicles
-The signal comes directly from the satellite signal receiver(GPS Speed Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)).
-Fixing dimension: 85mm(3-3/8″)
-Indicating Range: 2-999(MPH, Knots, KM/H adjustable)
-Faceplate Color: Black faceplate with Stainless Steel. If you need other colors, pls. search for B074JB9PDD (BN) or B074JBYM5K (WS)
-Working Voltage: 9-32V(12V/24V)
TRIP—mileage for one trip(will become zero after turning off the power);
ODO—cumulative total mileage(cannot be reset)

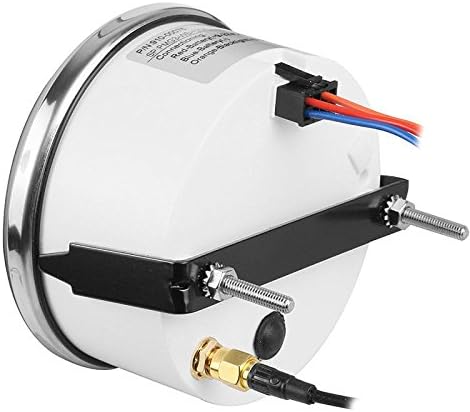

-Connection: Blue wire–Negative/Ground, Red wire–Positive, Orange wire–Positive(lighting wire)
-This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables. Sensor can be mounted at any position, on or under the dashboard.
-After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.
-Operation mode: LCD display, stepper motor

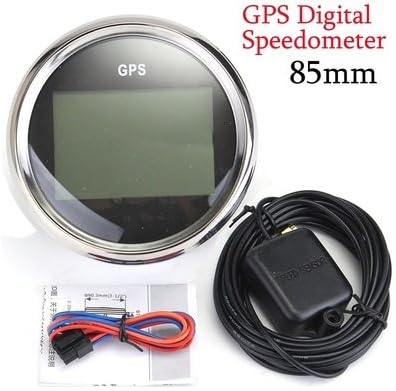

1x GPS speedometer
1x GPS Speed Sensor
1x Multi-plug socket

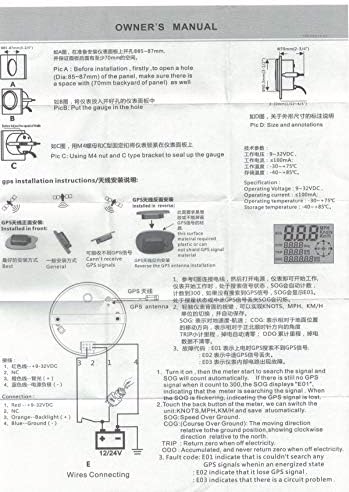

1x Installation Instruction

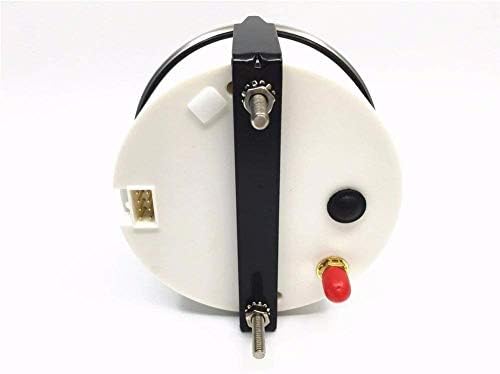

Open a 3-3/8″ dimension and 2-3/4″ depth hole, put gauge into it and fasten
Hook up easily, 3 wires connection(power, ground, lighting). This is complete unit, can work directly with gps sensor together, not need other sensor cables. Mount the sensor at any position, on or under the dashboard.
It takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.

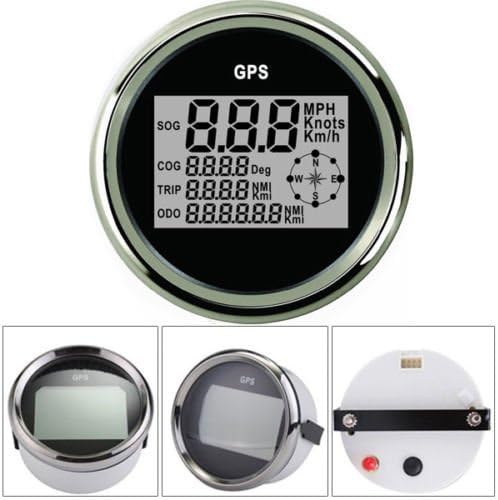

It shows Current Speed, Trip Meter(return to 0 after power off), COG, ODO(cannot be reset), Press the back button to adjust unit(KM/H. MPH, KNOTS). Notes: Low speed readings (speeds 3 knots and under) not useful
Red Backlight, 9-32VDC(12VDC/24VDC) Working Voltage,1 year Warranty, 100% Waterproof and anti-fogging protection
